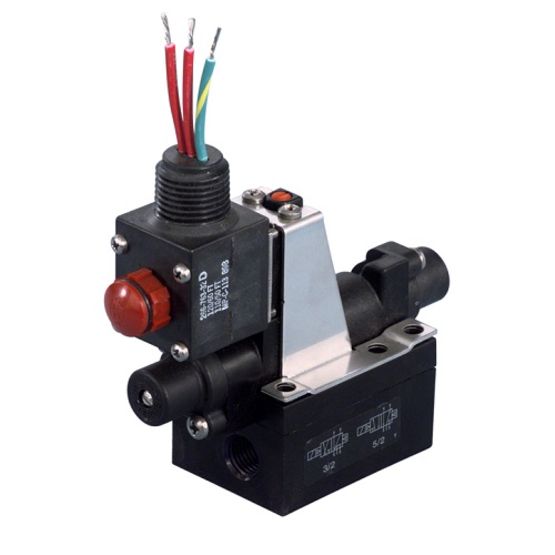

Representative photo. Please check item description for details.
401 Series Air Slide Valve (8401), 1/4" NPT, 120 VAC, Engineered Plastic, 4 Way
Manufacturer: Asco LP
Mfg Product Code: WT8401B202MAC120/60,110/50D
Weight: 1.9 lb(s)
On Hand: 0
Air Slide Valve, 1/4" NPT, 120 VAC, 4 Way
The ASCO Series 401, also known as 8401, is a line of pilot-operated air slide valves designed for air and inert gas service in heating equipment applications. The aluminum valves incorporate a unique sliding and sealing member that provides a durable and non-stick sealing method. Optional flow control regulates cylinder speed in either direction and permits adjustable Cv from 0.2 to 0.8.
Features
- Body Material: Engineered Plastics
- Flow (Cv) / Flow (Kv): 0.50 / 0.43
- Function: 4 way
- Pipe/Port Type & Size: NPT 1/4
- Valve Actuation: Solenoid
- Media: Air, Inert Gas
- Min to Max Operating Pressure (Air): 20 - 150 PSI
- Kit Number: 264013
- Coil Class: FT
- Coil Number: 266763-032-D
- Orifice Size: 1/4 in
- Voltage & Frequency: 110, 120 Volts AC with 50/60 Hz
- Watt Rating: 6.3 W
- Item Status: Active
- Lead Length: 18 inch
- Carton Note: 1/4 X 1/4 4W NYLON 6.3/F AC:
Specifications
| Valve Features | |
|---|---|
| Actuation | Solenoid |
| Uncategorized | |
|---|---|
| Brand_Name | Asco |
| Media | Air, Inert Gas |
| Flow (Cv / Kv) | 0.50 / 0.43 |
| Mounting Direction | Any |
| Process Connection Type | NPT |
| Pressure Range | 20 to 150 psi |
| Min Operating Pressure | 20 psi |
| Max Operating Pressure | 150 psi |
| Flow Coefficient | 0.50 Cv |
| Process Connection Size | 1/4" |
| Input Voltage | 120 VAC |
| Function | 4 Way |
| Frequency | 60 Hz |
| Body Material | Engineered Plastics |
| Lead Length | 18 in |
| NEMA / UL | NEMA 1/2/3/3S/4/4X |
| Seal Material | NBR |
