  2. 210 Series Solenoid Valve (8210), 2" NPT, 120 VAC, Brass, 2 Way-2/2 NC

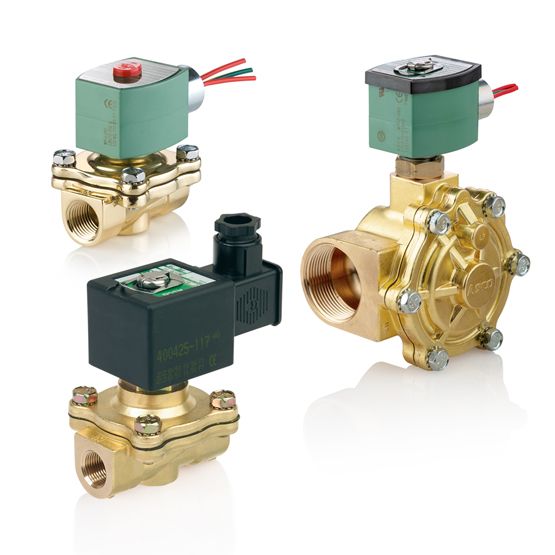

Representative photo. Please check item description for details.

210 Series Solenoid Valve (8210), 2" NPT, 120 VAC, Brass, 2 Way-2/2 NC

https://www.branom.com/web/image/product.template/273437/image_1920?unique=fc8cdd6
(0 review)
Manufacturer Product Code
SC8210G100AC120/60,110/50 		Manufacturer
Asco LP
MADE TO ORDER
 Weight
9.0 lb(s)

Datasheet Other Info

Solenoid Valve, 2" NPT, 120 VAC, Brass, 2 Way-2/2 NC

$ 1,128.64 1128.64 USD $ 1,194.33

$ 1,194.33

Not Available For Sale

  • Actuation
  • Brand_Name
  • Media
  • Flow (Cv / Kv)
  • Mounting Direction
  • -Seating Elastomer
  • Process Connection Type
  • Pressure Range
  • Min Operating Pressure
  • Max Operating Pressure
  • Flow Coefficient
  • Max Operating Temperature
  • Process Connection Size
  • Input Voltage
  • Watts
  • Function
  • Coil Class
  • Frequency
  • Body Material
  • NEMA / UL
  • Seal Material

This combination does not exist.

Contact Us

The ASCO Series 210, also known as 8210, is a line of economical, high-flow general service solenoid valves for liquid, corrosive, and air/inert gas service. With a wide range of pressure ratings, sizes, and resilient materials, the ultra-reliable 2-way solenoid valves provide long service life and low internal leakage. Industrial applications include car wash equipment, air compressors, pumps, laundry equipment, and industrial water control.

Features

  • Body Material: Brass
  • Flow (Cv) / Flow (Kv): 43.00 / 37.19
  • Function: 2 way - 2/2 Normally Closed
  • Pipe/Port Type & Size: NPT 2
  • Valve Actuation: Solenoid
  • Media: Air, Inert Gas, Water, Light Oil
  • Min to Max Operating Pressure (Air): 5 - 150 PSI
  • Min to Max Operating Pressure (Water): 5 - 125 PSI
  • Min to Max Operating Pressure (Light Oil): 5 - 90 PSI
  • Product Weight: 9.00 lbs
  • Kit Number: 304355
  • Coil Class: FT
  • Coil Number: 238212-032
  • Min to Max Ambient Temperature: 32 - 125 °F
  • Min to Max Fluid Temperature: 32 - 180 °F
  • Orifice Size: 1-3/4 in
  • Voltage & Frequency: 110, 120 Volts AC with 50/60 Hz
  • Watt Rating: 6.1 W
  • Item Status: Active
  • Carton Note: 2 X 1-3/4 2NC BRASS 6.1/F AC
  • Seating Elastomer: NBR
  • Mounting Direction: Any:

Specifications

Valve Features
Actuation Solenoid
Uncategorized
Brand_Name Asco
Media Air, Inert Gas, Light Oil, Water
Flow (Cv / Kv) 43.00 / 37.19
Mounting Direction Any
-Seating Elastomer NBR
Process Connection Type NPT
Pressure Range 5 to 150 psi
Min Operating Pressure 5 psi
Max Operating Pressure 150 psi
Flow Coefficient 43.00 Cv
Max Operating Temperature 125 °F
Process Connection Size 2"
Input Voltage 120 VAC
Watts 6.1
Function 2 Way 2/2 Normally Closed
Coil Class FT
Frequency 60 Hz
Body Material Brass
NEMA / UL NEMA 1/2/3/3S/4/4X
Seal Material NBR
