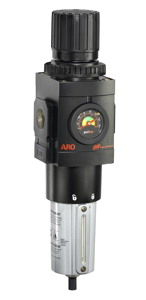

Representative photo. Please check item description for details.
ARO Piggyback Air Filter/Regulator-Gauge 1", 0-140PSI
Manufacturer: ARO/Ingersoll Rand
Mfg Product Code: P39464-610
Weight: 0.5 lb(s)
On Hand: 0
ARO P39464-610 piggyback air filter/regulators with flush mount gauge and metal bowl are used for general purpose compressed air filtering and pressure control. The compact design combining the filter and regulator into one integral unit saves space, set-up time, and piping costs. Self-relieving regulator features a pull to adjust and push to lock pressure adjustment knob. The unit has an aluminum body and metal bowl with sight glass. Filter with 5 micron element removes airborne solid and liquid contaminants from the airline. Panel mounting nut is included with each unit (max. 0.394" panel thickness, M62x1.5 thread).
Features
- Port Size: 1" NPT
- Gauge: Flush mount design
- Pressure Range: 0-140 PSI
- Flow Capacity: 250 SCFM (100 PSIG Supply, 90 PSI set)
- Maximum Inlet Pressure: 250 PSI
- Operating Temperature Range: 23 to 175 °F
- Filter Element: 5 micron
- Body/Knob<: Aluminum/acetal
- Bowl: Aluminum bowl with nylon sight glass
- Bowl Capacity: 2.8 oz.
- Diaphragm: Nitrile/nylon
- Bowl Drain: Manual (optional - automatic drain)
