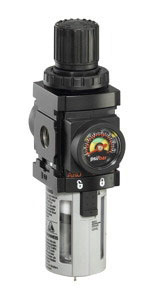

ARO Miniature Filter/Regulator-Gauge 1/4" 0-140PSI
Manufacturer: ARO/Ingersoll Rand
Mfg Product Code: P39124-600
Weight: 0.5 lb(s)
ARO P39124-600 miniature piggyback air filter/regulators with unique flush mount pressure gauge are used for general purpose compressed air filtering and pressure control applications. The compact design combining the filter and regulator into one integral unit saves space, set-up time, and piping costs. Self-relieving regulator features a pull to adjust and push to lock pressure adjustment knob. The unit has an aluminum body and polycarbonate bowl with bowl guard. Filter with 5 micron element removes airborne solids and liquid contaminants from the airline. Panel mounting nut is included with each unit (max. 0.140" panel thickness, M28x1.0 thread).
Features
- Port Size: 1/4" NPT
- Gauge: Flush mount design
- Pressure Range: 0-140 PSI
- Flow Capacity: 47 SCFM (100 PSIG Supply, 90 PSI set)
- Maximum Inlet Pressure: 150 PSI
- Operating Temperature Range: 23 to 125 °F
- Filter Element: 5 micron
- Body/Knob: Aluminum/acetal
- Bowl: Polycarbonate with nylon bowl guard
- Bowl Capacity: 0.50 oz.
- Diaphragm: Nitrile/acetal
- Bowl Drain: Manual (optional - automatic drain)
