  2. 210 Series Solenoid Valve (8210), 1" NPT, 24 VDC, Brass, 2 Way-2/2 NC

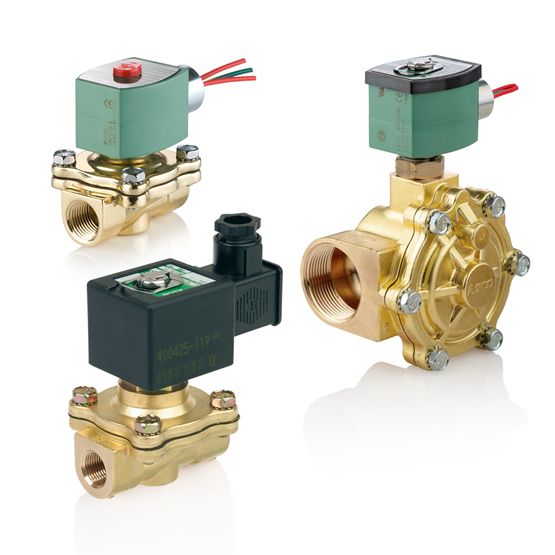

Representative photo. Please check item description for details.

210 Series Solenoid Valve (8210), 1" NPT, 24 VDC, Brass, 2 Way-2/2 NC

https://www.branom.com/web/image/product.template/449043/image_1920?unique=d50860e
(0 review)
Manufacturer Product Code
EF8210G004DC24/DCD 		Manufacturer
Asco LP
MADE TO ORDER
 Weight
4.59 lb(s)

Datasheet Other Info

Solenoid Valve, 1" NPT, 24 VDC, Brass, 2 Way-2/2 NC

$ 419.58 419.58 USD $ 444.00

$ 444.00

Not Available For Sale

  • Actuation
  • Brand_Name
  • Media
  • Flow (Cv / Kv)
  • Mounting Direction
  • Process Connection Type
  • Pressure Range
  • Min Operating Pressure
  • Max Operating Pressure
  • Flow Coefficient
  • Max Operating Temperature
  • Process Connection Size
  • Input Voltage
  • Watts
  • Function
  • Coil Class
  • Body Material
  • Lead Length
  • NEMA / UL
  • Seating Elastomer
  • Seal Material

This combination does not exist.

Contact Us

The ASCO Series 210, also known as 8210, is a line of economical, high-flow general service solenoid valves for liquid, corrosive, and air/inert gas service. With a wide range of pressure ratings, sizes, and resilient materials, the ultra-reliable 2-way solenoid valves provide long service life and low internal leakage. Industrial applications include car wash equipment, air compressors, pumps, laundry equipment, and industrial water control.

Features

  • Body Material: Brass
  • Flow (Cv) / Flow (Kv): 13.00 / 11.24
  • Function: 2 way - 2/2 Normally Closed
  • Pipe/Port Type & Size: NPT 1
  • Valve Actuation: Solenoid
  • Media: Air, Inert Gas, Water, Light Oil
  • Min to Max Operating Pressure (Air): 5 - 125 PSI
  • Min to Max Operating Pressure (Water): 5 - 125 PSI
  • Min to Max Operating Pressure (Light Oil): 5 - 125 PSI
  • Product Weight: 4.50 lbs
  • Kit Number: 302379
  • Coil Class: FT
  • Coil Number: 238714-006-D
  • Min to Max Ambient Temperature: 32 - 104 °F
  • Min to Max Fluid Temperature: 32 - 150 °F
  • Orifice Size: 1 in
  • Voltage: 24 Volts DC
  • Watt Rating: 11.6 W
  • Item Status: Active
  • Lead Length: 18 inch
  • Carton Note: 1 X 1 2NC BRASS 11.6/F DC
  • Seating Elastomer: NBR
  • Mounting Direction: Any:

Specifications

Valve Features
Actuation Solenoid
Uncategorized
Brand_Name Asco
Media Air, Inert Gas, Light Oil, Water
Flow (Cv / Kv) 13.00 / 11.24
Mounting Direction Any
Process Connection Type NPT
Pressure Range 5 to 125 psi
Min Operating Pressure 5 psi
Max Operating Pressure 125 psi
Flow Coefficient 13.00 Cv
Max Operating Temperature 104 °F
Process Connection Size 1"
Input Voltage 24 VDC
Watts 11.6
Function 2 Way 2/2 Normally Closed
Coil Class FT
Body Material Brass
Lead Length 18 in
NEMA / UL NEMA 1/2/3/3S/4/4X
Seating Elastomer NBR
Seal Material NBR
