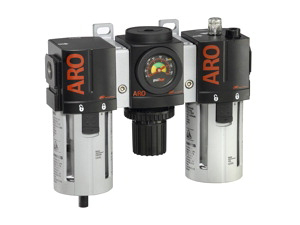

ARO Filter-Regulator-Lubricator-Gauge 1/2" 0-140PSI
Manufacturer: ARO/Ingersoll Rand
Mfg Product Code: C38341-800
Weight: 1.0 lb(s)
ARO C38341-800 air filter-regulator-lubricator combo unit with flush mount gauge is designed for general purpose air filtering, pressure control, and lubrication over a wide range of applications. The filter, regulator, and lubricator are connected by a unique modular mounting system which saves space, set-up time, and piping costs. Filter with 5 micron element removes airborne solids and liquid contaminants from the compressed air line. Self-relieving regulator features a pull to adjust and push to lock pressure adjustment knob. Easy to adjust oil-mist lubricator provides just the right amount of lubrication. Wall mounting brackets included.
Features
- Port Size: 1/2" NPT
- Gauge: Flush mount design
- Adjustable Pressure Range: 0-140 PSI
- Flow Capacity: 150 SCFM (100 PSI inlet, 90 PSI set)
- Maximum Inlet Pressure: 150 PSI
- Operating Temperature Range: 23 to 125 °F
- Filter Element: 5 micron
- Body: Aluminum
- Adjustment Knob: Acetal - pull to adjust-push to lock
- Filter Bowl: Polycarbonate with nylon guard 1.3 oz.
- Lubricator Bowl: Polycarbonate with nylon guard 1.9 oz.
- Diaphragm: Nitrile+nylon
- Filter Bowl Drain: Manual flex drain (optional - automatic float drain)
- Seals: Nitrile
