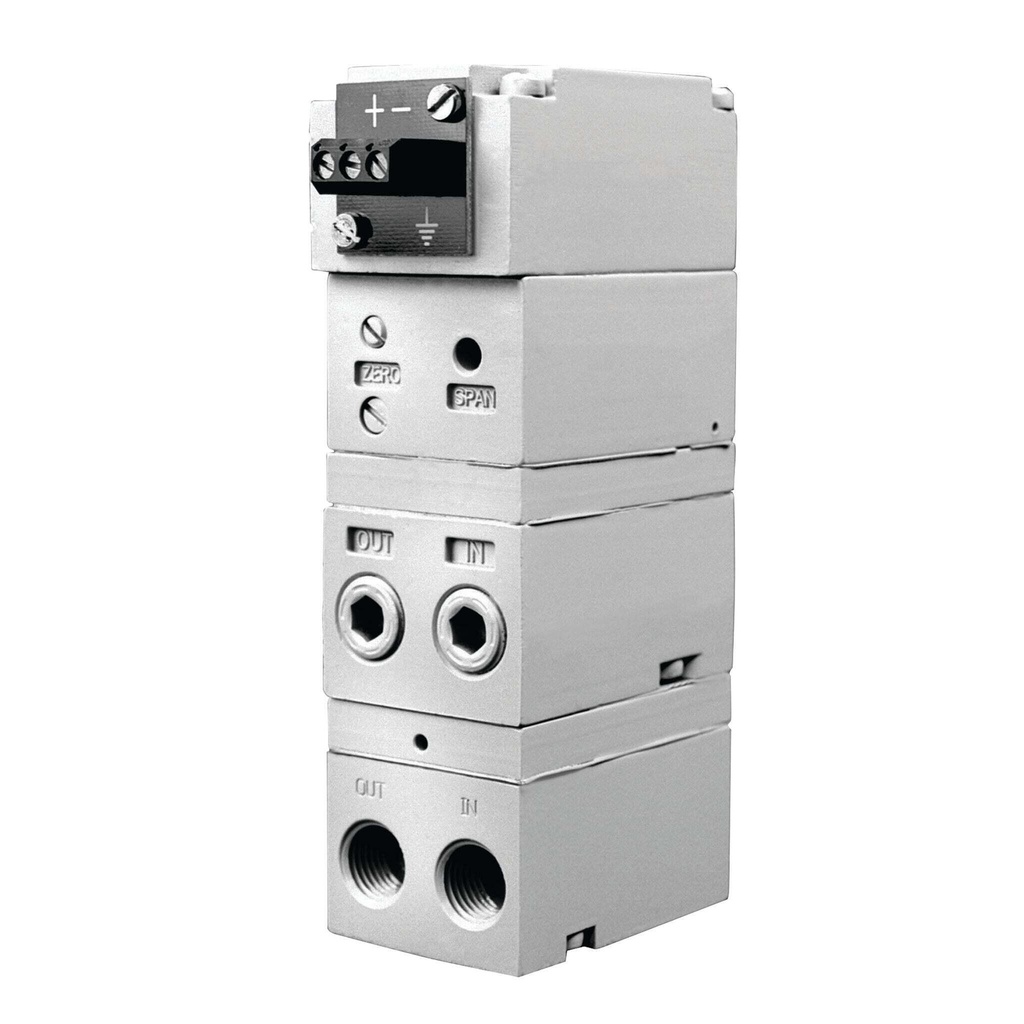

Bellofram T1500 NEMA 4X Transducer, 1/4" NPT Port, 4-20 MA DC, 0-120 psig, 1/2" NPT Conn, Nitrile Elastomers, FM, CSA & ATEX Instrinsically Safe
Manufacturer: Marsh Bellofram Corporation
Mfg Product Code: 966-716-000
Weight: 2.0 lb(s)
The T1500 is a new series of electropneumatic transducers that convert an electrical signal to a proportional pressure output. It provides precision electropneumatic control to actuators, valves, positioners, final control elements and is ideally used for high-flow control devices. The Type 1500's compact size and accessibility to ports and adjustments allow the unit to be installed in spaceconstrained locations or in a manifold for multi-device control. DIN rail and manifold assemblies are available in kits that provide three, five or ten mounting points. An integral pneumatic volume booster is included in the Type 1500 design to provide high flow capacity. (See specifications for flow data.)
Features:
- Electrical Connections: Conduit 1⁄2″ NPT or BSPT, Terminal Block, Hirschmann® Connectors (DIN 43 650-A)
- Supply and Output Ports on Front and Back of Unit
- Low Air Consumption
- External Zero and Span Adjustments
- Field Accessible Orifice
- Electrical Conduit Connection Meets CE Requirements
- Intrinsically Safe Versions (FM, CSA, ATEX Approvals)
- NEMA 4X Version (FM, CSA Approvals) Excludes Terminal Block
Applications:
- Valve Actuators
- Valve Positioners
- HVAC Systems
- Material handling systems
- Paper Handling Controls
- Automation systems
- Liquid and gas processing systems
Specifications
| Transducer: Brand | Marsh-Bellofram |
| Transducer: Type | Electropneumatic |
| Transducer: Series | T1500 NEMA 4X |
