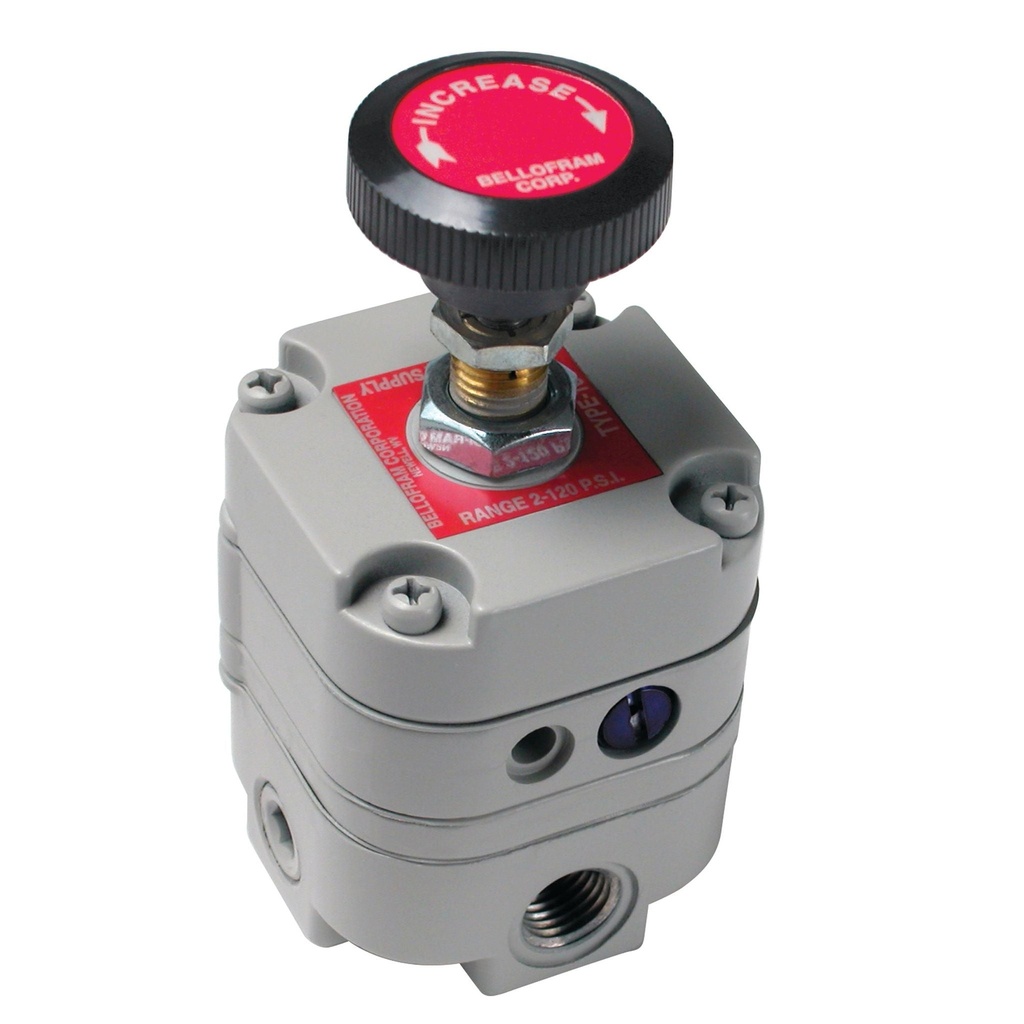

Representative photo. Please check item description for details.
Bellofram High Relief T10 HR Regulator, 1/4" NPT, 2-120 psi
Manufacturer: Marsh Bellofram Corporation
Mfg Product Code: 960-029-000
Weight: 2.0 lb(s)
On Hand: 1
Similar in proven accuracy and rugged construction to other Type 10 Regulators, these units provide extra fast “blowdown” for very rapid release of down stream pressure. The extra relief feature makes these regulators suitable for cylinder return stroke actuation, air hoists, and similar applications requiring fast exhaust.
Features:
- Highly Accurate Pressure Regulation to 0.1%
- Start-up Stability, Allowing Regulated Pressure to Return to Output Setting
- High-gain Pneumatic Servo Amplifier Regulates Wide Fluctuations in Flow
- Automatic High Downstream Relief Capacity
- Especially Good Performance from Dead End to 12 SCFM
- Locking Capability
- Temperature Stability
- Units may be installed in any position and panel mounted or supported by inline plumbing
- Available variations to meet particular requirements, such as high-relief, low-range and motorized configurations
Applications:
- Pipe and Vessel Air Pressure Monitoring
- Industrial Processes
- HVAC, Remote Pressure Control Ventilation Systems
- Electro-pneumatic Control
- Inspection Procedures
- Control and Analysis Instrumentation
- Medical Equipment Actuation
- Gas Mixing
- Valve Operation and Gate Actuation
- Positioned Signaling
- Calibration Stands
- Air Gauging
- Cylinder Loading
- Force Balance Hoists
- Disc and Shoe Air Braking
- Clamp Units
- Web Tensioning
- Roll Loading
- Press Units
Specifications
| Regulator: Brand | Marsh-Bellofram |
| Regulator: Type | Mechanical Pressure Reducing |
| Regulator: Series | T10 HR |
