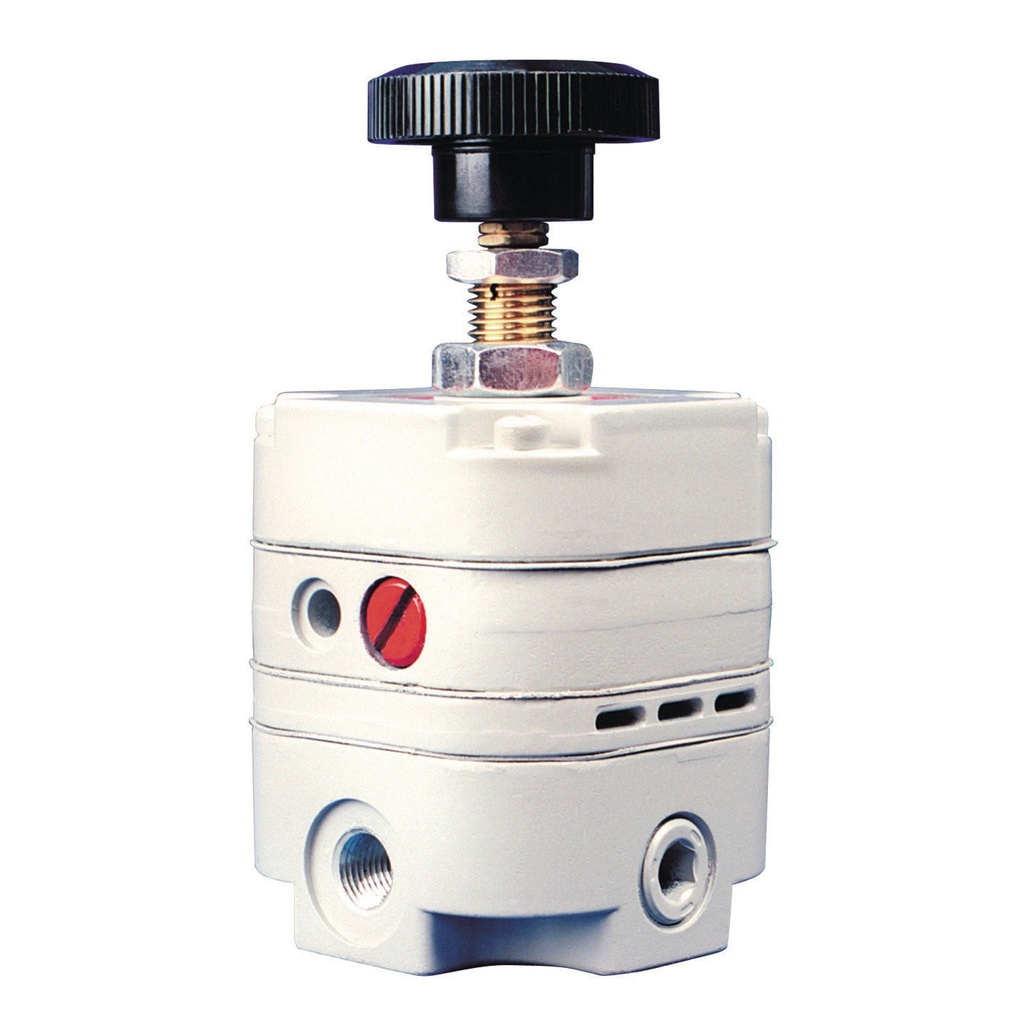

Bellofram T10 Precision Regulator, 1/4" NPT, 2-60 psi
Manufacturer: Marsh Bellofram Corporation
Mfg Product Code: 960-009-000
Weight: 1.5 lb(s)
On Hand: 1
The Marsh Bellofram Type 10 Air Pressure Regulator is designed to control output pressure with accuracy of 0.1% and high-repeatability, with very low sensitivity to changes in supply pressure, ambient temperature and flow.
Features:
- Highly Accurate Pressure Regulation to 0.1%
- Start-up Stability, Allowing Regulated Pressure to Return to Output Setting
- High-gain Pneumatic Servo Amplifier Regulates Wide Fluctuations in Flow
- Automatic High Downstream Relief Capacity
- Especially Good Performance from Dead End to 12 SCFM
- Locking Capability
- Temperature Stability
- Units may be installed in any position and panel mounted or supported by inline plumbing
- Available variations to meet particular requirements, such as high-relief, low-range and motorized configurations
Applications:
- Pipe and Vessel Air Pressure Monitoring
- Industrial Processes
- HVAC, Remote Pressure Control Ventilation Systems
- Electro-pneumatic Control
- Inspection Procedures
- Control and Analysis Instrumentation
- Medical Equipment Actuation
- Gas Mixing
- Valve Operation and Gate Actuation
- Positioned Signaling
- Calibration Stands
- Air Gauging
- Cylinder Loading
- Force Balance Hoists
- Disc and Shoe Air Braking
- Clamp Units
- Web Tensioning
- Roll Loading
- Press Units
Specifications
| Regulator: Brand | Marsh-Bellofram |
| Regulator: Type | Mechanical Pressure Reducing |
| Regulator: Series | T10 |
