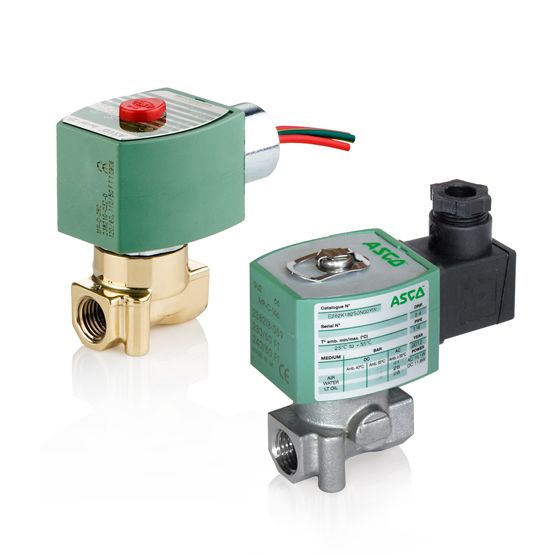

262 Series 2-Way Solenoid Valve, 1/4" NPT, 120 VAC, Stainless Steel, 2 Way-2/2 NO

https://www.branom.com/web/image/product.template/212769/image_1920?unique=fc8cdd6
(0 review)
Manufacturer Product Code
8262H134AC120/60,110/50D 		Manufacturer
Asco LP
MADE TO ORDER
 Weight
1.3 lb(s)

Datasheet

Solenoid Valve, 1/4" NPT, 120 VAC, 2 Way-2/2 NC

$ 332.20 332.2 USD $ 351.53

$ 351.53

Not Available For Sale

  • Valve: Actuation
  • Brand_Name
  • Media
  • Flow (Cv / Kv)
  • Mounting Direction
  • -Seating Elastomer
  • Process Connection Type
  • Flow Coefficient
  • Process Connection Size
  • Input Voltage
  • Watts
  • Function
  • Coil Class
  • Frequency
  • Body Material
  • Lead Length
  • NEMA / UL
  • Seal Material

This combination does not exist.

Contact Us

The ASCO Series 262 & 263, also known as 8262 & 8263, is a line of 2-way general service and specialty service solenoid valves available in brass or stainless steel. These rugged valves handle media such as air/inert gas, water, hot water, steam, light oil, fuel gas, fuel oil, Biodiesel fuel (B20) and cryogenic fluids. The 262 & 263 Series are suitable for commercial and industrial applications such as car wash systems, dishwashing and laundry equipment, pumps, compressors, boilers, burners, food processing and many others.

Features

  • Body Material: Stainless Steel
  • Flow (Cv) / Flow (Kv): 0.21 / 0.18
  • Function: 2 way - 2/2 Normally Open
  • Pipe/Port Type & Size: NPT 1/4
  • Valve Actuation: Solenoid - Direct Acting
  • Media: Air, Inert Gas, Water, Light Oil
  • Product Weight: 1.30 lbs
  • Kit Number: 323989
  • Coil Number: 238610-032-D
  • Orifice Size: 3/32 in
  • Voltage & Frequency: 110, 120 Volts AC with 50/60 Hz
  • Watt Rating: 10.1 W
  • Item Status: Active
  • Lead Length: 18 inch
  • Carton Note: 1/4 X 3/32 2NO S.S. 10.1/F AC
  • Seating Elastomer: NBR
  • Coil Number: 238610-032-D
  • Kit Number: 323989
  • Product Weight: 1.30 lb:

Specifications

Valve Features
Valve: Actuation Solenoid - Direct Acting
Uncategorized
Brand_Name Asco
Media Air, Inert Gas, Light Oil, Water
Flow (Cv / Kv) 0.21 / 0.18
Mounting Direction Any
-Seating Elastomer NBR
Process Connection Type NPT
Flow Coefficient 0.21 Cv
Process Connection Size 1/4"
Input Voltage 120 VAC
Watts 10.1
Function 2 Way 2/2 Normally Open
Coil Class F
Frequency 60 Hz
Body Material SS
Lead Length 18 in
NEMA / UL NEMA 1/2/3/3S/4/4X
Seal Material NBR
