262 Series 2-Way Solenoid Valve, 1/8" NPT, 12 VDC, Brass, 2 Way-2/2 NC
Manufacturer: Asco LP
Mfg Product Code: 8262H002DC12/DCD
Weight: 0.93 lb(s)
On Hand: 0
Solenoid Valve, 1/8" NPT, 12 VDC, 2 Way-2/2 NC

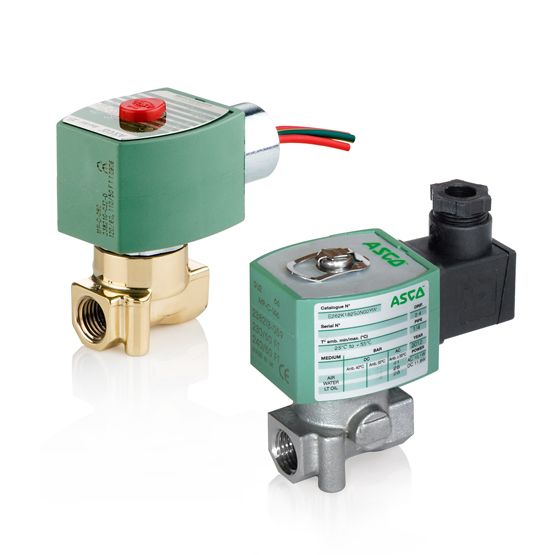

The ASCO Series 262 & 263, also known as 8262 & 8263, is a line of 2-way general service and specialty service solenoid valves available in brass or stainless steel. These rugged valves handle media such as air/inert gas, water, hot water, steam, light oil, fuel gas, fuel oil, Biodiesel fuel (B20) and cryogenic fluids. The 262 & 263 Series are suitable for commercial and industrial applications such as car wash systems, dishwashing and laundry equipment, pumps, compressors, boilers, burners, food processing and many others.
Features
- Body Material: Brass
- Flow (Cv) / Flow (Kv): 0.35 / 0.30
- Function: 2 way - 2/2 Normally Closed
- Pipe/Port Type & Size: NPT 1/8
- Valve Actuation: Solenoid - Direct Acting
- Media: Air, Inert Gas, Water, Light Oil
- Product Weight: 0.93 lbs
- Order Code: 21966
- Kit Number: 323587
- Coil Class: HT
- Coil Number: 238510-004-D
- Min to Max Ambient Temperature: -13 - 104 °F
- Min to Max Fluid Temperature: -13 - 180 °F
- Orifice Size: 1/8 in
- Voltage: 12 Volts DC
- Watt Rating: 10.6 W
- Item Status: Active
- Lead Length: 18 inch
- Carton Note: 1/8 X 1/8 2NC BRASS 10.6/H DC
- Seating Elastomer: NBR
- Mounting Direction: Any:
Specifications
| Brand_Name | Asco |
| Mounting Direction | Any |
| Process Connection Type | NPT |
| Flow Coefficient | 0.35 Cv |
| Process Connection Size | 1/8" |
| Measurement Minimum | 0 |
| Input Voltage | 12 VDC |
| Watts | 10.6 |
| Function | 2 Way 2/2 Normally Closed |
| Coil Class | HT |
| Body Material | Brass |
| Lead Length | 18 in |
| NEMA / UL | NEMA 1/2/3/3S/4/4X |
| Seal Material | NBR |
