  1. All Products
  2. 214 Series High-Flow Gas Shut-Off Solenoid Valve (8214), 1/2" NPT, 24 VDC, Aluminum, 2 Way-2/2 NC

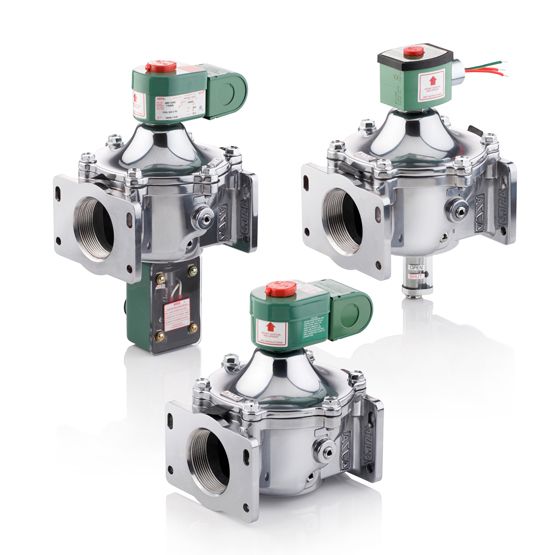

Representative photo. Please check item description for details.

214 Series High-Flow Gas Shut-Off Solenoid Valve (8214), 1/2" NPT, 24 VDC, Aluminum, 2 Way-2/2 NC

https://www.branom.com/web/image/product.template/469178/image_1920?unique=18bfe67
(0 review)
Manufacturer Product Code
8214G020DC24/DCD 		Manufacturer
Asco LP
MADE TO ORDER
 Weight
1.81 lb(s)

Datasheet

Solenoid Valve, 1/2" NPT, 24 VDC, 2 Way-2/2 NC

$ 216.41 216.41 USD $ 229.00

$ 229.00

Not Available For Sale

  • Actuation
  • Brand_Name
  • Media
  • Flow (Cv / Kv)
  • Mounting Direction
  • Mounting Direction
  • Process Connection Type
  • Flow Coefficient
  • Process Connection Size
  • Input Voltage
  • Watts
  • Function
  • Coil Class
  • Body Material
  • Lead Length
  • Seating Elastomer
  • Seal Material

This combination does not exist.

Contact Us

The ASCO Series 214, also known as 8214, high-flow, low-pressure (5 psi) gas safety shutoff valves are specifically designed for on-off control of fuel gas in commercial and industrial gas burners. Their unique double-disc design with over travel provides redundant sealing for leak-tight shutoff on pilot or main gas lines. A double-solenoid gas train provides an exceptionally small footprint for space constrained applications. The valves are ideal for natural gas fired boilers, furnaces, grain dryers, kilns, gas generators and commercial kitchen/cooking equipment.

Features

  • Body Material: Aluminum
  • Flow (Cv) / Flow (Kv): 4.40 / 3.80
  • Function: 2 way - 2/2 Normally Closed
  • Pipe/Port Type & Size: NPT 1/2
  • Valve Actuation: Solenoid
  • Media: Fuel Gas
  • Product Weight: 1.81 lbs
  • Kit Number: 316790
  • Coil Class: F
  • Coil Number: 238710-106-D
  • Min to Max Ambient Temperature: -40 - 125 °F
  • Min to Max Fluid Temperature: -20 - 104 °F
  • Orifice Size: 3/4 in
  • Voltage: 24 Volts DC
  • Watt Rating: 22.6 W
  • Item Status: Active
  • Lead Length: 18 inch
  • Carton Note: 1/2 X 3/4 2NC ALUM 22.6/F DC
  • Seating Elastomer: NBR
  • Mounting Direction: Any:

Specifications

Valve Features
Actuation Solenoid
Uncategorized
Brand_Name Asco
Media Fuel Gas
Flow (Cv / Kv) 4.40 / 3.80
Mounting Direction Any, Any
Process Connection Type NPT
Flow Coefficient 4.40 Cv
Process Connection Size 1/2"
Input Voltage 24 VDC
Watts 22.6
Function 2 Way 2/2 Normally Closed
Coil Class F
Body Material Aluminum
Lead Length 18 in
Seating Elastomer NBR
Seal Material NBR
