  2. 212 Series Composite Valve (8212), 1/2" NPT, 120-110 VAC, Plastic, 2 Way-2/2 NC

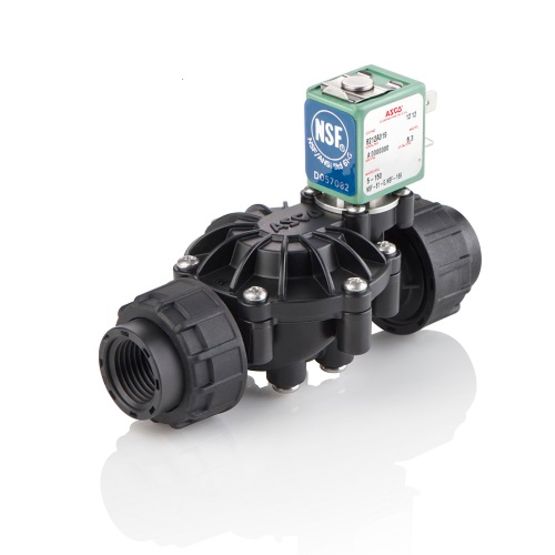

Representative photo. Please check item description for details.

212 Series Composite Valve (8212), 1/2" NPT, 120-110 VAC, Plastic, 2 Way-2/2 NC

https://www.branom.com/web/image/product.template/470496/image_1920?unique=fc8cdd6
(0 review)
Manufacturer Product Code
8212A019L0100F0 		Manufacturer
Asco LP
MADE TO ORDER
 Weight
1.81 lb(s)

Datasheet

Composite Valve, 1/2" NPT, 120-110 VAC, 2 Way-2/2 NC

$ 214.35 214.35 USD $ 226.83

$ 226.83

Not Available For Sale

  • Actuation
  • Brand_Name
  • Orifice Size
  • Flow (Cv / Kv)
  • Process Connection Type
  • Flow Coefficient
  • Max Operating Temperature
  • Process Connection Size
  • Input Voltage
  • Watts
  • Ingress Protection
  • Function
  • Coil Class
  • Body Material
  • Lead Length
  • Seating Elastomer

This combination does not exist.

Contact Us

ASCO has perfected composite valve technology with the Series 212, also known as 8212, plastic solenoid valves. The robust, easy-to-install valves are designed specifically for water purification and conditioning systems in commercial and industrial applications. With the highest pressure and temperature ratings on the market -- up to 150 psi and 150°F - the 212 Series solves the breakdown and reliability problems found in other types of composite valves. Its lightweight engineered plastic body has been built and tested to achieve up to 1 million operating cycles. The 212 Series comes with ASCO's new FasN universal connection system - the world's fastest, most secure valve connection technology.

Features

  • Flow (Cv) / Flow (Kv): 4.50/3.89
  • Function: 2 way - 2/2 Normally Closed
  • Pipe/Port Type & Size: NPT 1/2"
  • Valve Actuation: Solenoid
  • Coil Class: FB
  • Coil Number: 400147-225-D
  • Min - Max Ambient Temperature: 32.00 - 120.00 °F
  • Min - Max Fluid Temperature: 32.00 - 180.00 °F
  • Orifice Size: 3/4 in
  • Voltage: 120 AC|110 AC
  • Watt Rating: 6.3 W
  • Item Status: Active
  • Lead Length: 18 inch
  • Carton Note: 1/2 X 3/4 2NC PLAS 6.3/F AC
  • Seating Elastomer: NSF Approved Elastomers TPV:

Specifications

Valve Features
Actuation Solenoid
Uncategorized
Brand_Name Asco
Orifice Size 3/4 in
Flow (Cv / Kv) 4.50 / 3.89
Process Connection Type NPT
Flow Coefficient 4.50 Cv
Max Operating Temperature 120 °F
Process Connection Size 1/2"
Input Voltage 120/110 VAC
Watts 6.3
Ingress Protection IP65
Function 2 Way 2/2 Normally Closed
Coil Class FB
Body Material Plastic
Lead Length 18 in
Seating Elastomer NSF Approved Elastomers TPV
