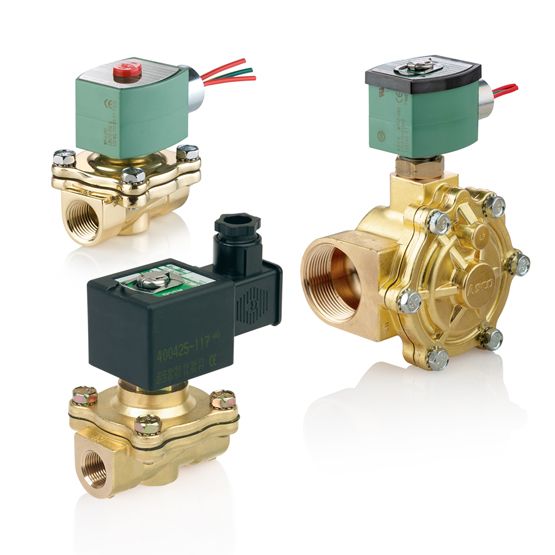

210 Series Solenoid Valve (8210), 1/2" NPT, 24 VAC, Brass, 2 Way-2/2 NO

The ASCO Series 210, also known as 8210, is a line of economical, high-flow general service solenoid valves for liquid, corrosive, and air/inert gas service. With a wide range of pressure ratings, sizes, and resilient materials, the ultra-reliable 2-way solenoid valves provide long service life and low internal leakage. Industrial applications include car wash equipment, air compressors, pumps, laundry equipment, and industrial water control.

Features

Body Material: Brass
Flow (Cv) / Flow (Kv): 4.00 / 3.46
Function: 2 way - 2/2 Normally Open
Pipe/Port Type & Size: NPT 1/2
Valve Actuation: Solenoid
Media: Air, Inert Gas, Water, Light Oil, Fuel Gas
Product Weight: 2.40 lbs
Kit Number: 302334
Coil Class: FT
Coil Number: 238610-005-D
Min to Max Ambient Temperature: 32 - 125 °F
Min to Max Fluid Temperature: 32 - 180 °F
Orifice Size: 5/8 in
Voltage & Frequency: 24 Volts AC with 60 Hz
Watt Rating: 10.1 W
Item Status: Active
Lead Length: 18 inch
Carton Note: 1/2 X 5/8 2NO BRASS 10.1/F AC
Holding Current (VA): 25
Seating Elastomer: NBR
Mounting Direction: Any:

Manufacturer Product Code 8210G034AC24/60D	Manufacturer Asco LP
MADE TO ORDER	Weight 2.4 lb(s) Datasheet

210 Series Solenoid Valve (8210), 1/2" NPT, 24 VAC, Brass, 2 Way-2/2 NO

$ 342.35 342.35 USD $ 362.28

$ 362.28

Not Available For Sale

Specifications

Customer Reviews

Brand_Name	Asco
Mounting Direction	Any
Process Connection Type	NPT
Flow Coefficient	4.00 Cv
Max Operating Temperature	125 °F
Process Connection Size	1/2"
Measurement Minimum	0
Input Voltage	24 VAC
Watts	10.1
Function	2 Way 2/2 Normally Open
Coil Class	F
Frequency	60 Hz
Body Material	Brass
Lead Length	18 in
NEMA / UL	NEMA 1/2/3/3S/4/4X
Seal Material	NBR
