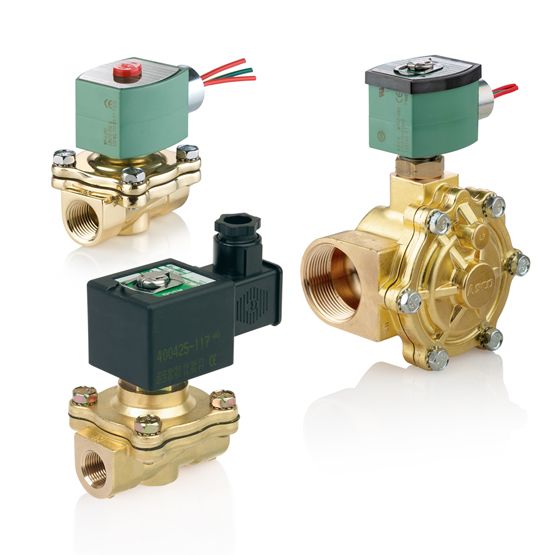

Representative photo. Please check item description for details.
210 Series Solenoid Valve (8210), 3/8" NPT, 120 VAC, Brass, 2 Way-2/2 NO
Manufacturer: Asco LP
Mfg Product Code: 8210G033AC120/60,110/50D
Weight: 3.06 lb(s)
On Hand: 0
Solenoid Valve, 3/8" NPT, 120 VAC, Brass, 2 Way-2/2 NC
The ASCO Series 210, also known as 8210, is a line of economical, high-flow general service solenoid valves for liquid, corrosive, and air/inert gas service. With a wide range of pressure ratings, sizes, and resilient materials, the ultra-reliable 2-way solenoid valves provide long service life and low internal leakage. Industrial applications include car wash equipment, air compressors, pumps, laundry equipment, and industrial water control.
Features
- Body Material: Brass
- Flow (Cv) / Flow (Kv): 3.00 / 2.59
- Function: 2 way - 2/2 Normally Open
- Pipe/Port Type & Size: NPT 3/8
- Valve Actuation: Solenoid
- Media: Air, Inert Gas, Water, Light Oil, Fuel Gas
- Product Weight: 3.06 lbs
- Order Code: 20146
- Kit Number: 302334
- Coil Class: FT
- Coil Number: 238610-032-D
- Min to Max Ambient Temperature: 32 - 125 °F
- Min to Max Fluid Temperature: 32 - 180 °F
- Orifice Size: 5/8 in
- Voltage & Frequency: 110, 120 Volts AC with 50/60 Hz
- Watt Rating: 10.1 W
- Item Status: Active
- Lead Length: 18 inch
- Carton Note: 3/8 X 5/8 2NO BRASS 10.1/F AC
- Holding Current (VA): 25
- Seating Elastomer: NBR
- Mounting Direction: Any:
Specifications
| Brand_Name | Asco |
| Mounting Direction | Any |
| Process Connection Type | NPT |
| Flow Coefficient | 3.00 Cv |
| Max Operating Temperature | 125 °F |
| Process Connection Size | 3/8" |
| Measurement Minimum | 0 |
| Input Voltage | 120 VAC |
| Watts | 10.1 |
| Function | 2 Way 2/2 Normally Open |
| Coil Class | FT |
| Frequency | 60 Hz |
| Body Material | Brass |
| Lead Length | 18 in |
| NEMA / UL | NEMA 1/2/3/3S/4/4X |
| Seal Material | NBR |
