$ 564.83
564.83
USD
$ 597.70
$ 597.70
Not Available For Sale
-
Brand_Name
-
Mounting Direction
-
Process Connection Type
-
Flow Coefficient
-
Max Operating Temperature
-
Process Connection Size
-
Measurement Minimum
-
Input Voltage
-
Watts
-
Function
-
Coil Class
-
Frequency
-
Body Material
-
Lead Length
-
NEMA / UL
-
Seal Material
This combination does not exist.

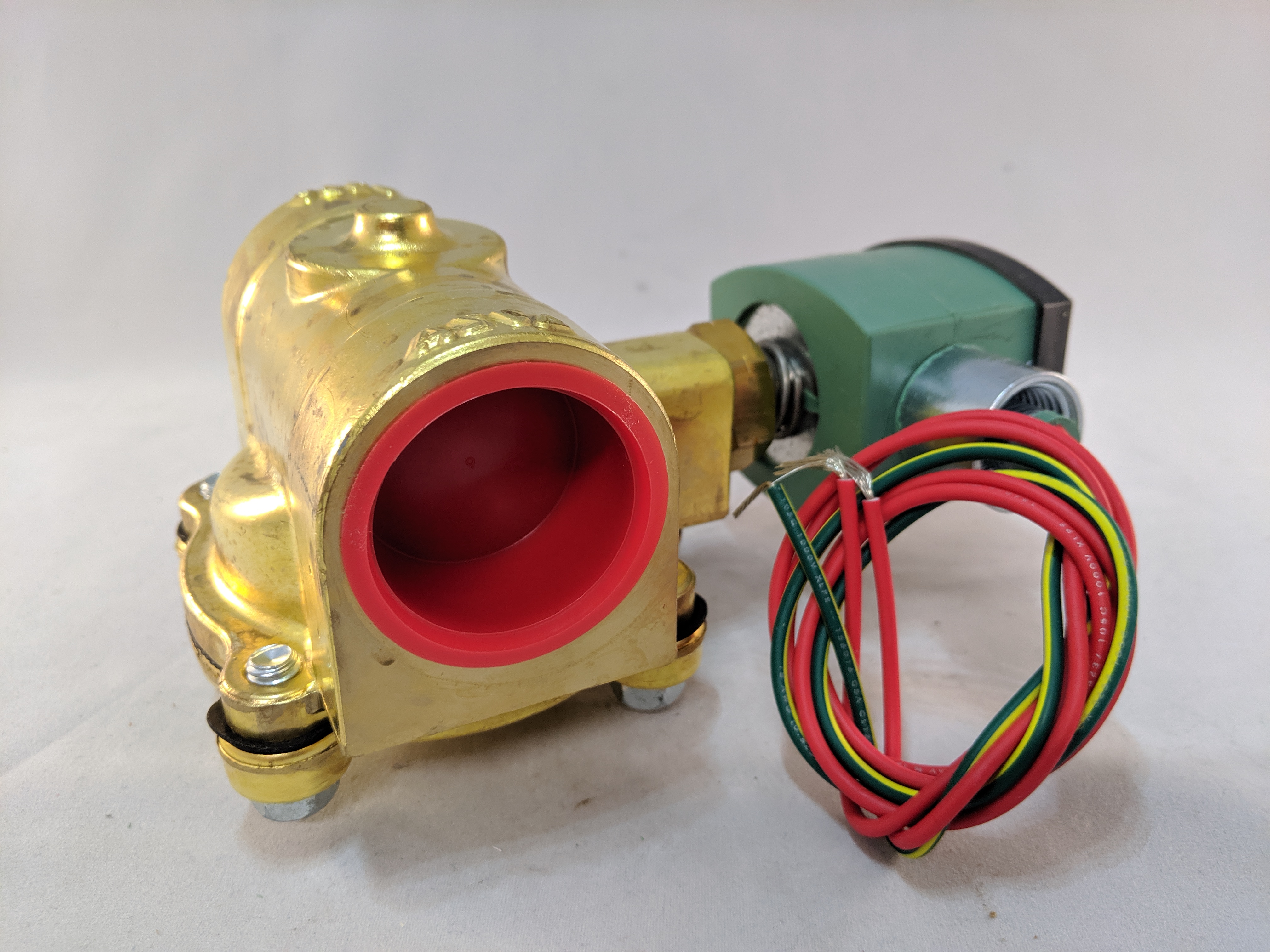

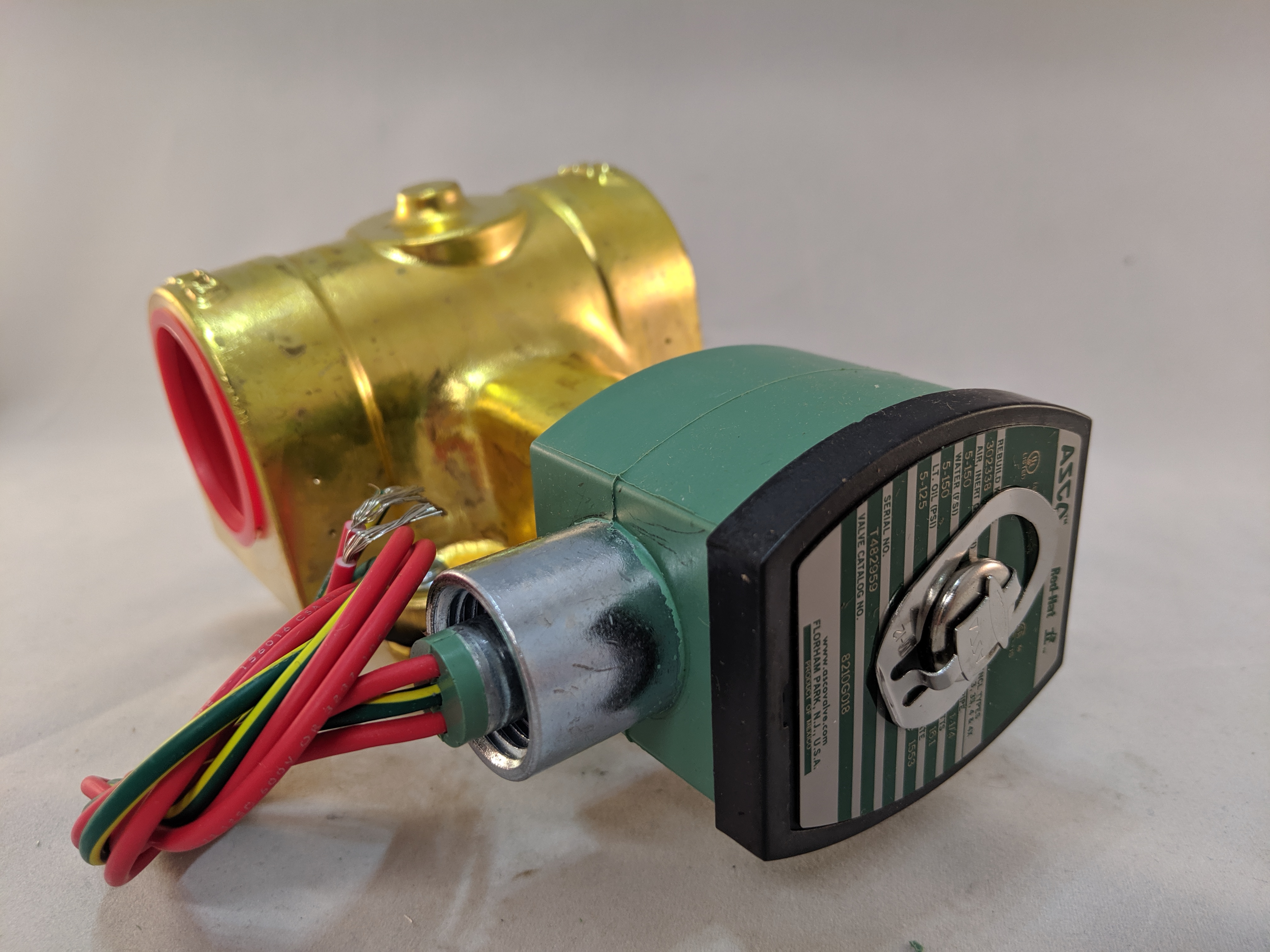

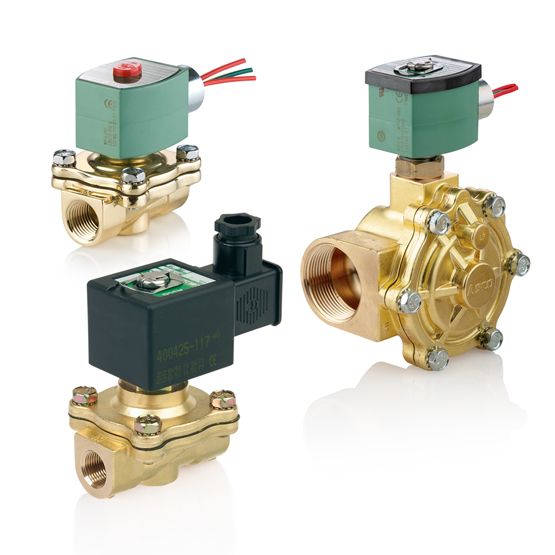

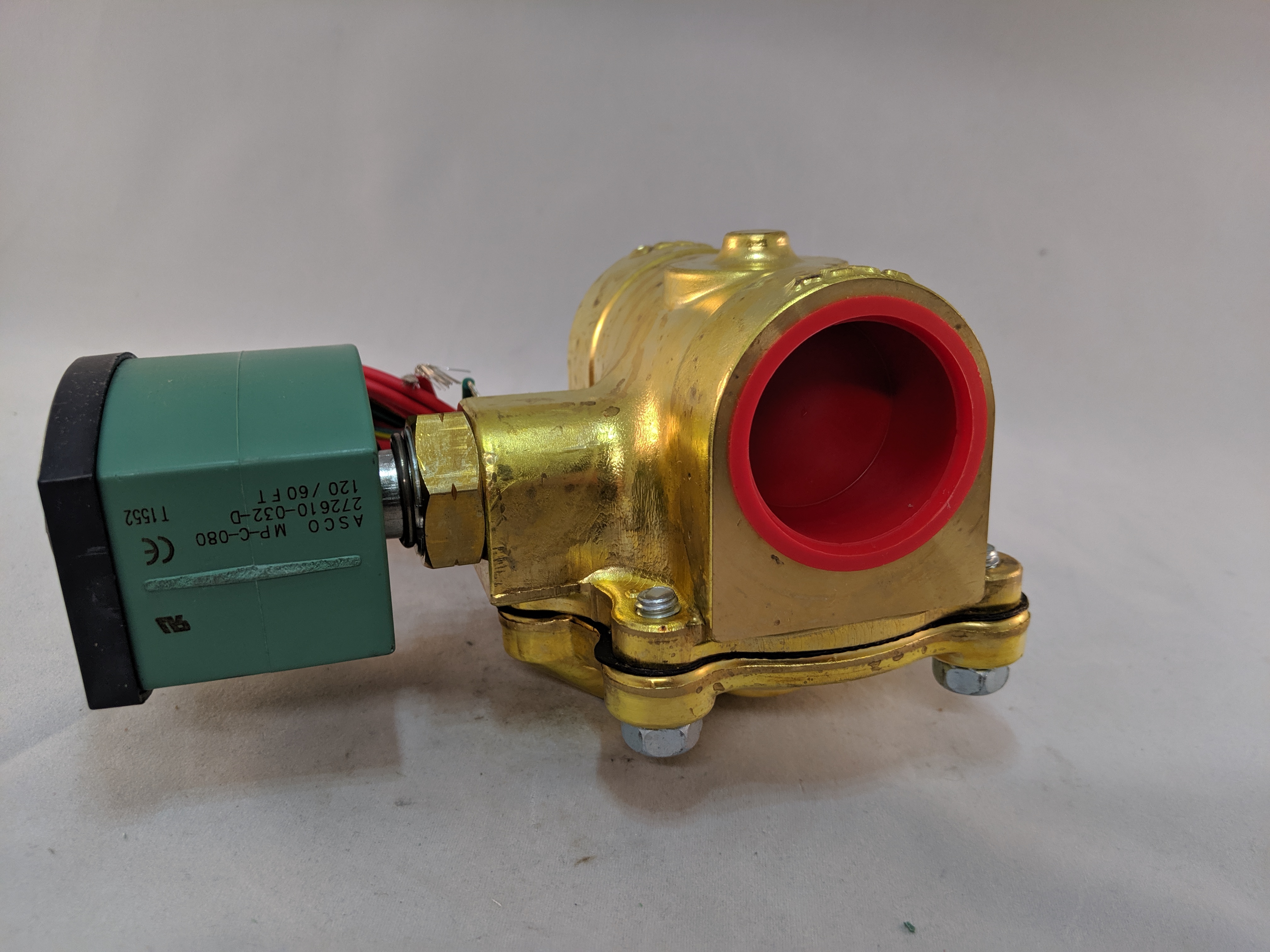

The ASCO Series 210, also known as 8210, is a line of economical, high-flow general service solenoid valves for liquid, corrosive, and air/inert gas service. With a wide range of pressure ratings, sizes, and resilient materials, the ultra-reliable 2-way solenoid valves provide long service life and low internal leakage. Industrial applications include car wash equipment, air compressors, pumps, laundry equipment, and industrial water control.
Features
- Body Material: Brass
- Flow (Cv) / Flow (Kv): 15.00 / 12.97
- Function: 2 way - 2/2 Normally Open
- Pipe/Port Type & Size: NPT 1 1/4
- Valve Actuation: Solenoid
- Media: Air, Inert Gas, Water, Light Oil
- Min to Max Operating Pressure (Air): 5 - 150 PSI
- Min to Max Operating Pressure (Water): 5 - 150 PSI
- Min to Max Operating Pressure (Light Oil): 5 - 125 PSI
- Order Code: 21720
- Kit Number: 302338
- Coil Class: FT
- Coil Number: 272610-032-D
- Min to Max Ambient Temperature: 32 - 125 °F
- Min to Max Fluid Temperature: 32 - 180 °F
- Orifice Size: 1-1/8 in
- Voltage & Frequency: 120 Volts AC with 60 Hz
- Watt Rating: 16.1 W
- Item Status: Active
- Lead Length: 18 inch
- Carton Note: 1-1/4X1-1/8 2NO BRS 16.1/F AC
- Holding Current (VA): 35
- Seating Elastomer: NBR
- Mounting Direction: Any:
