  2. 210 Series Solenoid Valve (8210), 1/2" NPT, 240 VAC, Brass, 2 Way-2/2 NC

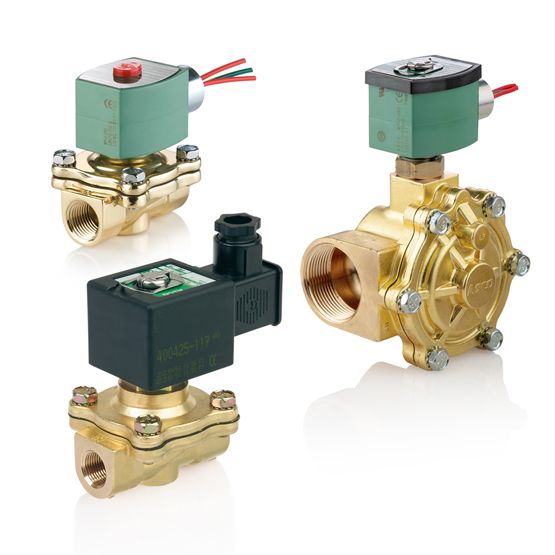

Representative photo. Please check item description for details.

210 Series Solenoid Valve (8210), 1/2" NPT, 240 VAC, Brass, 2 Way-2/2 NC

https://www.branom.com/web/image/product.template/411817/image_1920?unique=fc8cdd6
(0 review)
Manufacturer Product Code
8210G002LFAC240/60D 		Manufacturer
Asco LP
MADE TO ORDER
 Weight
4.4 lb(s)

Datasheet Other Info

Solenoid Valve, 1/2" NPT, 240 VAC, Brass, 2 Way-2/2 NC

$ 217.40 217.4 USD $ 230.05

$ 230.05

Not Available For Sale

  • Valve: Actuation
  • Brand_Name
  • Flow (Cv / Kv)
  • Process Connection Type
  • Flow Coefficient
  • Process Connection Size
  • Input Voltage
  • Watts
  • Function
  • Coil Class
  • Frequency
  • Body Material
  • Lead Length
  • NEMA / UL
  • Seal Material

This combination does not exist.

Contact Us

The ASCO Series 210, also known as 8210, is a line of economical, high-flow general service solenoid valves for liquid, corrosive, and air/inert gas service. With a wide range of pressure ratings, sizes, and resilient materials, the ultra-reliable 2-way solenoid valves provide long service life and low internal leakage. Industrial applications include car wash equipment, air compressors, pumps, laundry equipment, and industrial water control.

Features

  • Body Material: Brass
  • Flow (Cv) / Flow (Kv): 4.00 / 3.46
  • Function: 2 way - 2/2 Normally Closed
  • Pipe/Port Type & Size: NPT 1/2
  • Valve Actuation: Solenoid
  • Product Weight: 4.19 lbs
  • Kit Number: 326064
  • Coil Class: FT
  • Coil Number: 238210-058-D
  • Orifice Size: 5/8 in
  • Voltage & Frequency: 240 Volts AC with 60 Hz
  • Watt Rating: 6.1 W
  • Item Status: Active
  • Lead Length: 18 inch
  • Carton Note: 1/2 X 5/8 2NC BRASS 6.1/F AC
  • Watt Rating: 6.1 W
  • Coil Class: FT
  • Coil Number: 238210-058-D
  • Kit Number: 326064
  • Product Weight: 4.19 lb:

Specifications

Valve Features
Valve: Actuation Solenoid
Uncategorized
Brand_Name Asco
Flow (Cv / Kv) 4.00 / 3.46
Process Connection Type NPT
Flow Coefficient 4.00 Cv
Process Connection Size 1/2"
Input Voltage 240 VAC
Watts 6.1
Function 2 Way 2/2 Normally Closed
Coil Class FT
Frequency 60 Hz
Body Material Brass
Lead Length 18 in
NEMA / UL NEMA 1/2/3/3S/4/4X
Seal Material NBR
