  2. 210 Series Solenoid Valve (8210), 3/4" NPT, 120 VAC, Brass, 2 Way-2/2 NC

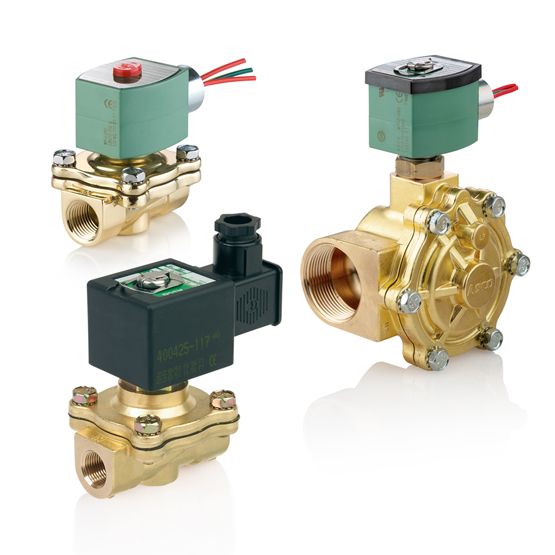

Representative photo. Please check item description for details.

210 Series Solenoid Valve (8210), 3/4" NPT, 120 VAC, Brass, 2 Way-2/2 NC

https://www.branom.com/web/image/product.template/215141/image_1920?unique=fc8cdd6
(0 review)
Manufacturer Product Code
8210D095AC120/60,110/50D 		Manufacturer
Asco LP
MADE TO ORDER
 Weight
2.01 lb(s)

Datasheet Other Info

Solenoid Valve, 3/4" NPT, 120 VAC, Brass, 2 Way-2/2 NC

$ 909.21 909.21 USD $ 962.13

$ 962.13

Not Available For Sale

  • Valve: Actuation
  • Brand_Name
  • Media
  • Flow (Cv / Kv)
  • Mounting Direction
  • -Seating Elastomer
  • Process Connection Type
  • Flow Coefficient
  • Max Operating Temperature
  • Process Connection Size
  • Holding Current (VA)
  • Input Voltage
  • Function
  • Coil Class
  • Frequency
  • Body Material
  • Lead Length
  • NEMA / UL
  • Seal Material

This combination does not exist.

Contact Us

The ASCO Series 210, also known as 8210, is a line of economical, high-flow general service solenoid valves for liquid, corrosive, and air/inert gas service. With a wide range of pressure ratings, sizes, and resilient materials, the ultra-reliable 2-way solenoid valves provide long service life and low internal leakage. Industrial applications include car wash equipment, air compressors, pumps, laundry equipment, and industrial water control.

Features

  • Body Material: Brass
  • Flow (Cv) / Flow (Kv): 5.00 / 4.32
  • Function: 2 way - 2/2 Normally Closed
  • Pipe/Port Type & Size: NPT 3/4
  • Valve Actuation: Solenoid
  • Media: Air, Inert Gas, Water
  • Product Weight: 2.01 lbs
  • Kit Number: 302276
  • Coil Class: F
  • Coil Number: 064982-004-D
  • Min to Max Ambient Temperature: 32 - 125 °F
  • Orifice Size: 3/4 in
  • Voltage & Frequency: 110, 120 Volts AC with 50/60 Hz
  • Watt Rating: 11 W
  • Item Status: Active
  • Lead Length: 18 inch
  • Carton Note: 3/4 X 3/4 2NC BRASS 11.0/F AC
  • Holding Current (VA): 23
  • Seating Elastomer: NBR
  • Mounting Direction: Any:

Specifications

Valve Features
Valve: Actuation Solenoid
Uncategorized
Brand_Name Asco
Media Air, Inert Gas, Water
Flow (Cv / Kv) 5.00 / 4.32
Mounting Direction Any
-Seating Elastomer NBR
Process Connection Type NPT
Flow Coefficient 5.00 Cv
Max Operating Temperature 125 °F
Process Connection Size 3/4"
Holding Current (VA) 23
Input Voltage 120 VAC
Function 2 Way 2/2 Normally Closed
Coil Class F
Frequency 60 Hz
Body Material Brass
Lead Length 18 in
NEMA / UL NEMA 1/2/3/3S/4/4X
Seal Material NBR
