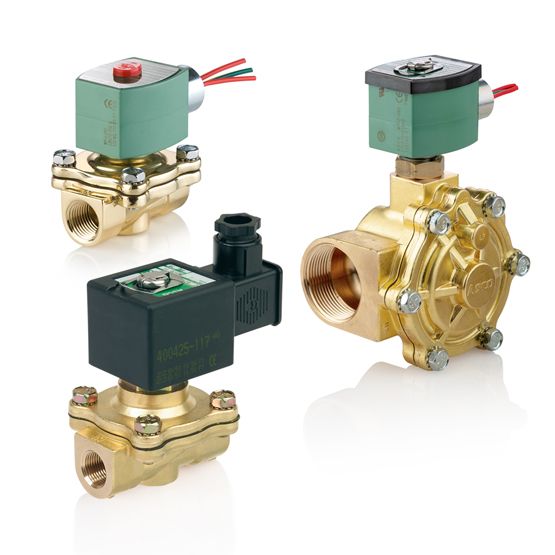

Representative photo. Please check item description for details.
210 Series Solenoid Valve (8210), 3/4" NPT, 120 VAC, Brass, 2 Way-2/2 NC
Manufacturer: Asco LP
Mfg Product Code: 8210D095AC120/60,110/50D
Weight: 2.01 lb(s)
On Hand: 0
Solenoid Valve, 3/4" NPT, 120 VAC, Brass, 2 Way-2/2 NC
The ASCO Series 210, also known as 8210, is a line of economical, high-flow general service solenoid valves for liquid, corrosive, and air/inert gas service. With a wide range of pressure ratings, sizes, and resilient materials, the ultra-reliable 2-way solenoid valves provide long service life and low internal leakage. Industrial applications include car wash equipment, air compressors, pumps, laundry equipment, and industrial water control.
Features
- Body Material: Brass
- Flow (Cv) / Flow (Kv): 5.00 / 4.32
- Function: 2 way - 2/2 Normally Closed
- Pipe/Port Type & Size: NPT 3/4
- Valve Actuation: Solenoid
- Media: Air, Inert Gas, Water
- Product Weight: 2.01 lbs
- Kit Number: 302276
- Coil Class: F
- Coil Number: 064982-004-D
- Min to Max Ambient Temperature: 32 - 125 °F
- Orifice Size: 3/4 in
- Voltage & Frequency: 110, 120 Volts AC with 50/60 Hz
- Watt Rating: 11 W
- Item Status: Active
- Lead Length: 18 inch
- Carton Note: 3/4 X 3/4 2NC BRASS 11.0/F AC
- Holding Current (VA): 23
- Seating Elastomer: NBR
- Mounting Direction: Any:
Specifications
| Valve Features | |
|---|---|
| Actuation | Solenoid |
| Uncategorized | |
|---|---|
| Brand_Name | Asco |
| Media | Air, Inert Gas, Water |
| Flow (Cv / Kv) | 5.00 / 4.32 |
| Mounting Direction | Any |
| -Seating Elastomer | NBR |
| Process Connection Type | NPT |
| Flow Coefficient | 5.00 Cv |
| Max Operating Temperature | 125 °F |
| Process Connection Size | 3/4" |
| Holding Current (VA) | 23 |
| Input Voltage | 120 VAC |
| Function | 2 Way 2/2 Normally Closed |
| Coil Class | F |
| Frequency | 60 Hz |
| Body Material | Brass |
| Lead Length | 18 in |
| NEMA / UL | NEMA 1/2/3/3S/4/4X |
| Seal Material | NBR |
