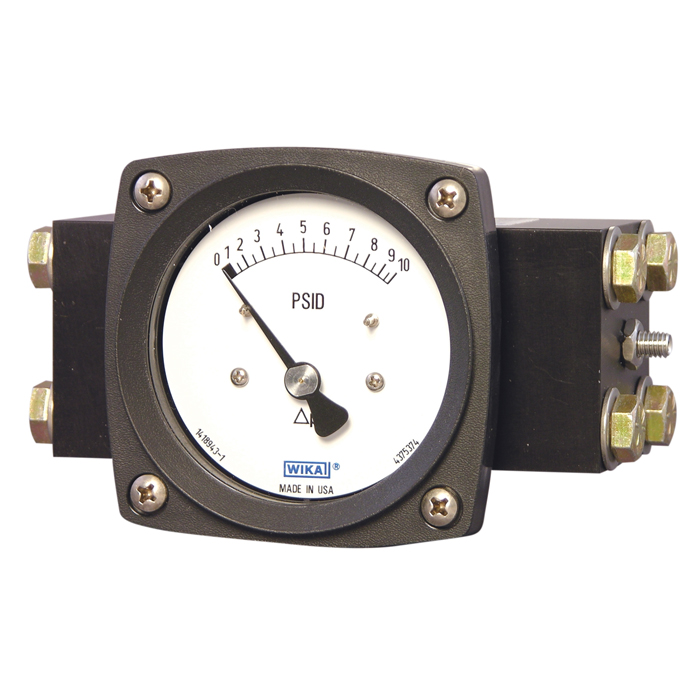

70x.05 2.5" or 4.5" Series Thermoplastic Differential Pressure Gauge w/Magnetic Piston Sensing Element & Separating Diaphragm, Dry/Fillable, SS or Aluminum Wetted Parts

https://www.branom.com/web/image/product.template/543820/image_1920?unique=4ecfeaa
(0 review)

Manufacturer: Wika Instrument Lp

Mfg Product Code:

On Hand: 0

70x.05 Differential Press Gauge

The Wika 70x.05 Series Differential Pressure Gauge tackles demanding measurement applications that involve high differential and static process pressures.  This robust gauge is specifically designed to excel in environments where media separation is crucial or where liquid or gas may contain particulate matter.


The 70x.05 Series features a reliable magnetic piston sensing element, known for its smooth operation and accurate readings.  Encased in a rugged thermoplastic case, this gauge is built to endure harsh industrial settings.  A key feature is the integrated Buna-N separating diaphragm, which isolates the measured media from the internal components, protecting the gauge from contamination and ensuring accurate measurement even with particulates present.


While boasting a maximum working pressure of 3000 psig (200 barg), the 70x.05 Series remains versatile.  It offers a wide range of differential pressure measurement capabilities, reaching up to 100 psid (7 bar).  This makes it suitable for monitoring pressure drops in various equipment that handle challenging media, perfect for applications in industries like chemical processing or power generation.


For dependable differential pressure measurement with media separation in demanding environments, the Wika 70x.05 Series is the ideal choice.  When you need top-of-the-line industrial gauges, look no further than Branom, your trusted supplier for reliable measurement solutions.

This product is no longer available.


Product Datasheets

Datasheet 1

Specifications

Wika 70x.05
Case Filling [702.05] Without or [703.05] With
Nominal Size [F] 4.5" or [C] 2.5"
Scale Range ■ psi ■ or [PG235] 5 psid or [PG269] 10 psid or [PG310] 15 psid or [PG314] 20 psid or [PG317] 25 psid or [PG321] 30 psid or [PG335] 50 psid or [PG341] 60 psid or [PG352] 75 psid or [PG369] 100 psid or ■ bard ■ or [BG310] 1 bard or [BG314] 1.4 bard or [BG317] 1.7 bard or [BG320] 2 bard or [BG335] 3.5 bard or [BG340] 4 bard or [BG350] 5 bard or [BG370] 7 bard or ■ inH2Od ■ or [IG212] 50 inH2Od or [IG219] 75 inH2Od or [IG225] 100 inH2Od or [IG250] 200 inH2Od or [IG275] 300 inH2Od or [IG310] 400 inH2Od
2nd Scale [Z] Without or [P] psid or [B] bard or [L] kpad or [K] kg/cm2d
Process Connection [AH] 2 x 1/4 NPT Female or [AK] 2 x 1/2 NPT Female
Connector Location [7] 2 x Back Entry or [J] Top/Bottom Connections
Additional Mounting Device [Z] Without or [B] Mounting Kit For Surface Or Pipe Mounting, Stainless Steel
Window [A] Acrylic (PMMA) or [H] Laminated Safety Glass (2.5") or [H] Laminated Safety Glass (4.5")
Set / Drag Pointer [Z-ZZ] Without or [K-ZZ] Adjustable Red Maximum Drag Pointer (2.5") or [K-ZZ] Adjustable Red Maximum Drag Pointer (4.5")
Case Filling [1] Prepared For Filling or [A] Glycerine or [P] Silicone, 1000 cSt or [9] Silicone Oil, 350 cSt
Measuring System [H] Anondized Aluminum (4.5") or [H] Anondized Aluminum (2.5") or [3] Stainless Steel (4.5") or [3] Stainless Steel (2.5")
Separation Diaphragm / Sealing [A-AB] Buna-N or [B-AB] Viton
Text / Mark on Dial [DZZZZZZZZZA5ZW] Δp or [ZZZZZZZZZZA5ZW] Without
Special Design Features [Z] Without
Certificates [Z] Without
Additional Ordering Info [Z] Without
Dial [AB] Aluminum, White, w/Stop-Pin
Mark Color [Z] Without
Arcs / Segments [Z] Without
Text / Mark on Dial [Z] Without
Logo Options [ZZZZZZ]
Manufacturer Logo [A]
Stop Pin on Dial [5] At Zero and Full Scale
Additional Mark [Z] Without
Norm-Mark on Dial [W] *Assembled in USA*
Gauge Features
Gauge: Brand Wika
Gauge: Model 702.05, 703.05
Gauge: Dial Size 4-1/2 in (110 & 115 mm), 2-1/2 in (63 mm & 68 mm)
Gauge: Scale Range ≥ 10 psi (0.6 bar) to ≤ 15,000 psi (1,000 bar)
Gauge: Pressure Type Differential Pressure
Gauge: Measuring Principle Other
Gauge: Fill Type Liquid Filled / Fillable
Gauge: Product Unit of Measure psi, bard, inH2Od
Gauge: Process Connection Size 1/4 NPT Female, 1/2 NPT Female
Gauge: Process Connection Location 2 x Back Entry, In-Line, End Connection
Gauge: Process Connection Type 2-Way (2 x)
Gauge: Wetted Material Anondized Aluminum, Stainless Steel
Gauge: Accuracy ±2%
Gauge: Case Material Thermoplastic, Fiberglass Reinforced
Gauge: Window Acrylic (PMMA), Laminated Safety Glass
Gauge: Dial Material Aluminum, White
Gauge: Pointer Material Plastic, Black
