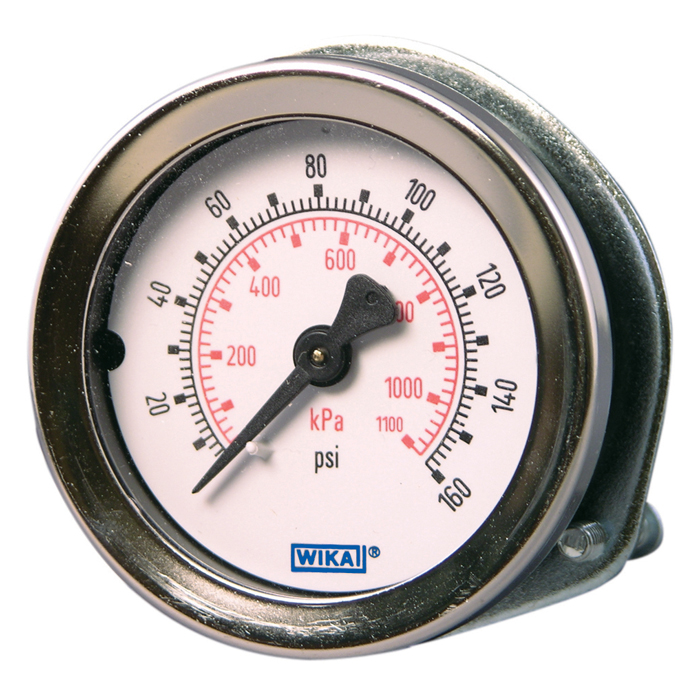

111.16PM Series 2.5" Dry U-Clamp Panel Mount Pressure Gauge, Brass Wetted Parts
Manufacturer: Wika Instrument Lp
Mfg Product Code: US-111.16-C-PG310-Z-NH-BAAZZZNZJZZ-ZZB2-ZZZAZ0-AAZUAZ1ZZZZZZ21ZZ
Weight: 0.5 lb(s)
111.16 2.5" U-Clamp Panel Mount Gauge
Introducing the 111.16P Series U-Clamp Panel Mount Pressure Gauge, a dependable solution engineered for precision in compressed gas regulation, HVAC systems, and recovery applications. Designed to excel in diverse environments, this gauge is suitable for all media that won't obstruct the pressure system or corrode copper alloy parts.
Featuring a durable black ABS case, this pressure gauge offers resilience and longevity without compromising on performance. Its reliability and economical design make it a practical choice for various industrial settings, ensuring accurate pressure monitoring without breaking the bank.
With its U-Clamp design, installation becomes hassle-free, allowing seamless integration into existing systems. The gauge fits standard US panel cut-outs, offering compatibility and convenience for quick and efficient setup.
When it comes to sourcing high-quality instrumentation, Branom stands as the premier destination. Renowned for its commitment to excellence and customer satisfaction, Branom is your trusted partner in procuring top-notch products like the 111.16P Series U-Clamp Panel Mount Pressure Gauge. Elevate your pressure monitoring capabilities with Branom, where reliability meets affordability for unparalleled performance in industrial applications.
Upgrade your pressure monitoring capabilities with the 111.16P Series U-Clamp Panel Mount Pressure Gauge from Branom, your go-to source for quality instrumentation.
Order Code Prefix: US-111.16-C-
Specifications
| Wika 111.16C | |
|---|---|
| Scale Range | ￭ psi ￭ or [PG310] 0/15 psi or [PG321] 0/30 psi or [PG341] 0/60 psi or [PG369] 0/100 psi or [PG410] 0/150 psi or [PG411] 0/160 psi or [PG414] 0/200 psi or [PG417] 0/250 psi or [PG421] 0/300 psi or [PG428] 0/400 psi or [PG434] 0/500 psi or [PG441] 0/600 psi or [PG455] 0/800 psi or [PG469] 0/1000 psi or [PG510] 0/1500 psi or [PG514] 0/2000 psi or [PG521] 0/3000 psi or [PG528] 0/4000 psi or [PG534] 0/5000 psi or [PG541] 0/6000 psi or ￭ inHg / psi ￭ or [PV310] -30 inHg/0 psi or [PV321] -30 inHg/15 psi or [PV331] -30 inHg/30 psi or [PV352] -30 inHg/60 psi or [PV379] -30 inHg/100 psi or [PV412] -30 inHg/160 psi or [PV415] -30 inHg/200 psi or [PV422] -30 inHg/300 psi |
| 2nd Scale | [Z] Without or [B] bar or [L] kPa |
| Process Connection | [NH-BAA] 1/8 NPT or [NB-BAA] 1/4 NPT |
| Bezel | [Z] Without or [D] SS, Crimped |
| Mounting Flange / Bracket | [ZZN] Without or [AON] Round U-Clamp Bracket, Zinc Plated Steel |
| Restrictor | [ZJZZ-ZZ2] Without or [AJZZ-ZZ2] Brass, D 0.3 |
| Pointer | [B] Plastic, Black or [Y] Aluminum, Black |
| Internal Tap in Connection | [Z] Without or [A] M5 Internal Tap in Pressure Port |
| Thread Protection | [ZZA] Without or [1ZA] With Thread Protection |
| Panel Adapter Ring | [Z0] Without or [A0] Adapter Ring, Black Plastic |
| Dial | [AAZUA] Plastic, White, w/Stop-Pin or [ASZUA] Plastic, White, w/o Stop-Pin or [ABZUA] Aluminum, White, w/Stop-Pin |
| Color for Inner Scale | [Z1ZZZZZZ] Without or [C1ZZZZZZ] Red |
| Manufacturer Logo | [2] WIKA® or [Z] Without |
| Stop Pin on Dial | [1ZZ] At Zero or [ZZZ] Without |
| Nominal Size | 2.5" |
| Connector Location | [B] Center Back Mount |
| Case Material | [AA] Black Plastic |
| Window | [N] Clear Plastic |
| Accuracy Class | [J] +/- 3/2/3% (ASME B40.100 Grade B) |
| Set / Drag Pointer | [Z] Without |
| Special Design Features | [Z] Without |
| Certificates | [Z] Without |
| Additional Ordering Info | [Z] Without |
| Movement | [2] Standard |
| PTFE Tape on Connection | [Z] Without |
| Process Connection Surface Area | [A] Brass |
| Packing | [0] Individual Packing, Plastic Bag |
| Serial Number on Dial | [Z] Without |
| Pressure Gauge Standard | [U] US-Standard |
| Color for Outer Scale | [A] Black |
| Dial Background | [1] White |
| Text for Dial | [Z] Without |
| Logo Options | [ZZZZZ] Without |
| Additional Mark | [Z] Without |
| Norm-Mark on Dial | [Z] Without |
| Gauge Features | |
|---|---|
| *Gauge Brand | Wika |
| *Model | 111.16PM |
| *Dial Size | 2-1/2 in (63 mm & 68 mm) |
| *Scale Range | ≥ 10 psi (0.6 bar) to ≤ 15,000 psi (1,000 bar) |
| *Pressure Type | Gauge Pressure |
| *Measuring Principle | Bourdon Tube |
| *Fill Type | Dry |
| *Product Unit of Measure | psi / inHg |
| *Process Connection Size | 1/8 NPT, 1/4 NPT |
| *Process Connection Location | Center Back Mount |
| *Wetted Material | Copper Alloy (Brass) |
| *Accuracy | ±3% |
| *Case Material | Plastic |
| *Window | Snap-In, Clear Plastic |
| *Dial Material | Plastic, White, Aluminum |
| *Pointer Material | Plastic, Black |
| *Bezel Material | None, SS |
